DB-F Series
Molded-case Circuit Breaker (DB-F Series)

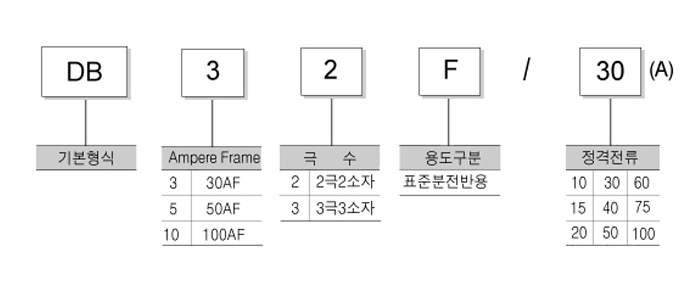

Model system & Order form
Rating
| Frame Size | Rating 30AF | Rating 50AF | Rating 100AF | |||||
|---|---|---|---|---|---|---|---|---|
| Type | DB32F | DB33F | DB52F | DB53F | DB102F | DB103F | ||
| Poles, Number of Elements | 2P2E | 3P3E | 2P2E | 3P3E | 2P2E | 3P3E | ||
| Rating | Electric current(In) | A | (5,10), 15, 20, 30 | 15, 20, 30, 40, 50 | 60, 75, 100 | |||
| Voltage(Ue) | AC(V) | 460 | 460 | 460 | ||||
| Rating Breaking Current | AC | 460V | (5)10 | 10 | 5 | 5 | ||
| 220V | 50 | 75 | 10 | 10 | ||||
| External Size | a | 50 | 75 | 50 | 75 | 50 | 75 | |
| b | 96 | 96 | 96 | |||||
| c | 60 | 60 | 60 | |||||
| d | 80 | 80 | 80 | |||||
| Download PDF Download DWG | Download PDF Download DWG | Download PDF Download DWG | Download PDF Download DWG | Download PDF Download DWG | Download PDF Download DWG | |||
| Acquisition Standard | KS Certification / CE Certification | KS Certification / CE Certification | KS Certification / CE Certification | |||||
Standard
- Standard Criteria
- KS C 4613
- KS C 8321
- IEC 60947-2
- Approval & Certification
- KS
Characteristic
- DIN rail and screw mounting method from 30 to 100AF
- Dimensional compatibility of molded-case circuit breaker and earth leakage breaker by frame rating(Twin Type)
- Product height 60 mm Panel exposed surface dimension unified with 50 mm to pursue convenience when used with a general molded-case circuit breaker
- Compact and lightweight product, ideal for distribution panel production
